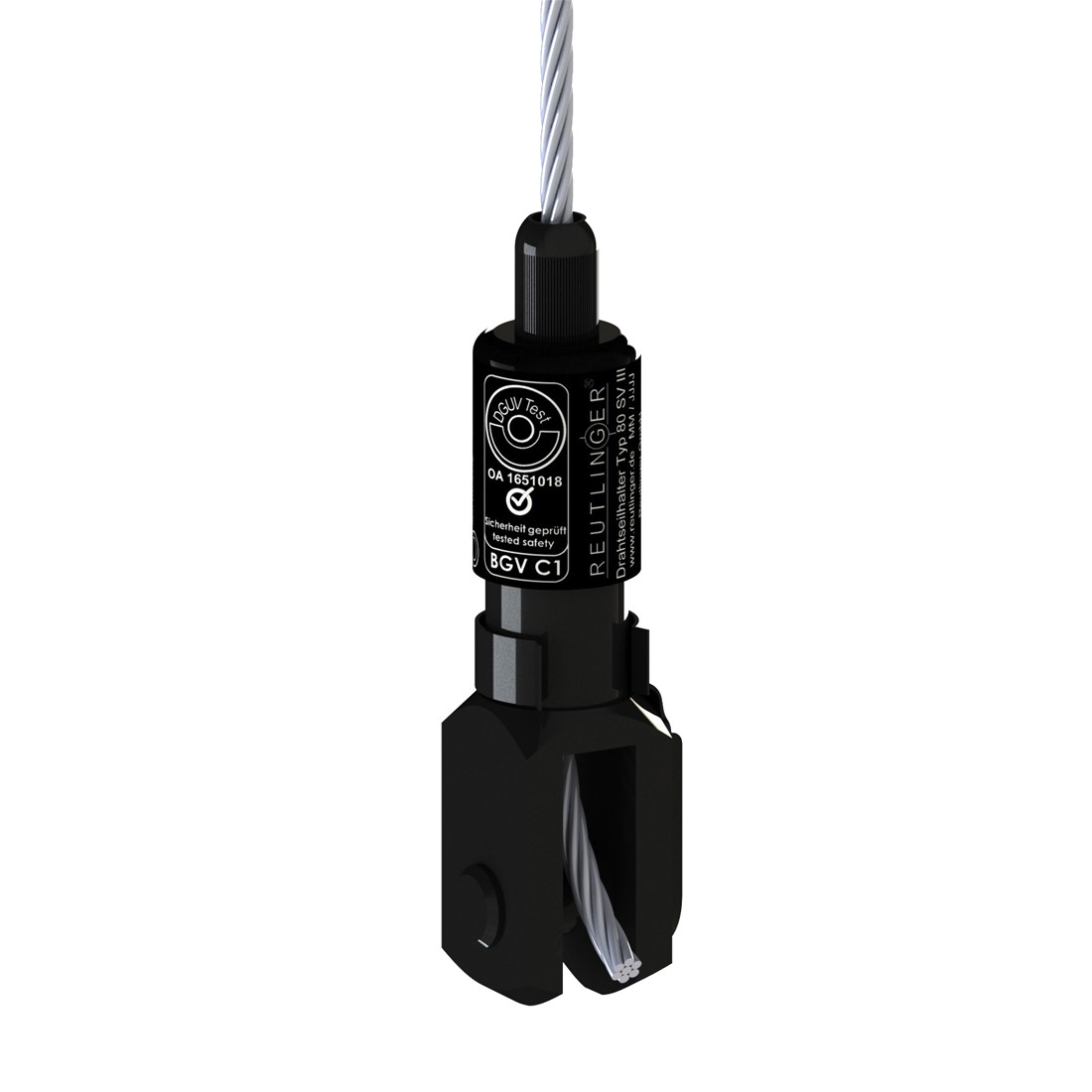

Duratruss Reutlinger 80SV III fork
Reutlinger 80SV III Fork. The wire rope holder with central cable exit, Fork 20x40, safety nut and six-ball gripping mechanism is TÜV certified and has also the test certificate for use in the scope of application DGUV regulation 17 (BGV C1).
Specifications:
- Application: only for indoor use
- Version: black zinced
- Wire rope O: 6.0mm and 8.0mm
- Safe working loads: 135-240kg due DGUV 17 (old BGV C1)
- Max. deflection angle: 5°
- Diameter: 40mm
- Total lenght: 190mm
- Usable fork lenght: 40mm
- Gib diameter: 40mm
Výrobce | Duratruss B.V |
---|
